5N333 化学吸排管 14 bar (200 psi) - 恶劣工况 PTFE EN 13765 Type 3

5N333 化学吸排管 14 bar (200 psi) - 恶劣工况 PTFE EN 13765 Type 3

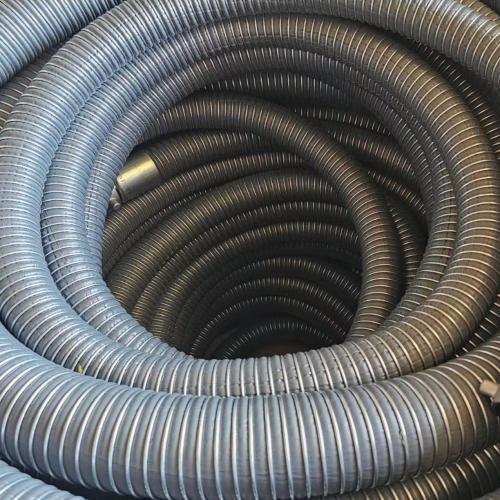

Tube: PTFE film.
Inner wire: stainless steel wire.
Cover: grey PVC coated fabric with helicoidal red stripe-white letters.
Outer wire: stainless steel wire.

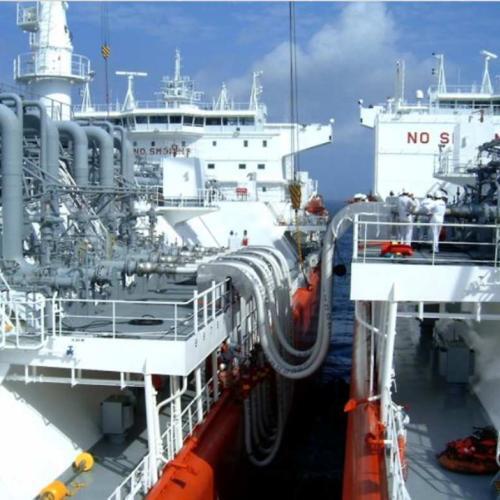

Application: acid, chemical, fuel and solvents suction and delivery.
Specially designed for long service life in heavy duty applications where high temperature resistance is required.
Temperature: -30 °C +115 °C (-22 °F +239 °F)
Electrical conductivity: ensured by the two wires in contact with fittings.
Electrical resistance: ≤ 2,5 Ω/m up to DN 50 mm (2")
≤ 1,0 Ω/m over DN 50 mm (2")


内部钢丝: 不锈钢钢丝
内胶层: PTFE 薄膜
外胶层: 灰色 PVC 镀层织物带纵向白条纹
外部钢丝: 不锈钢钢丝
应用: 酸、化学品、燃料和溶剂的吸排，在恶劣工况下拥有超长的使用寿命，耐高温
安全系数: 4:1
温度范围: -30 °C +120 °C (-22 °F +248 °F)
